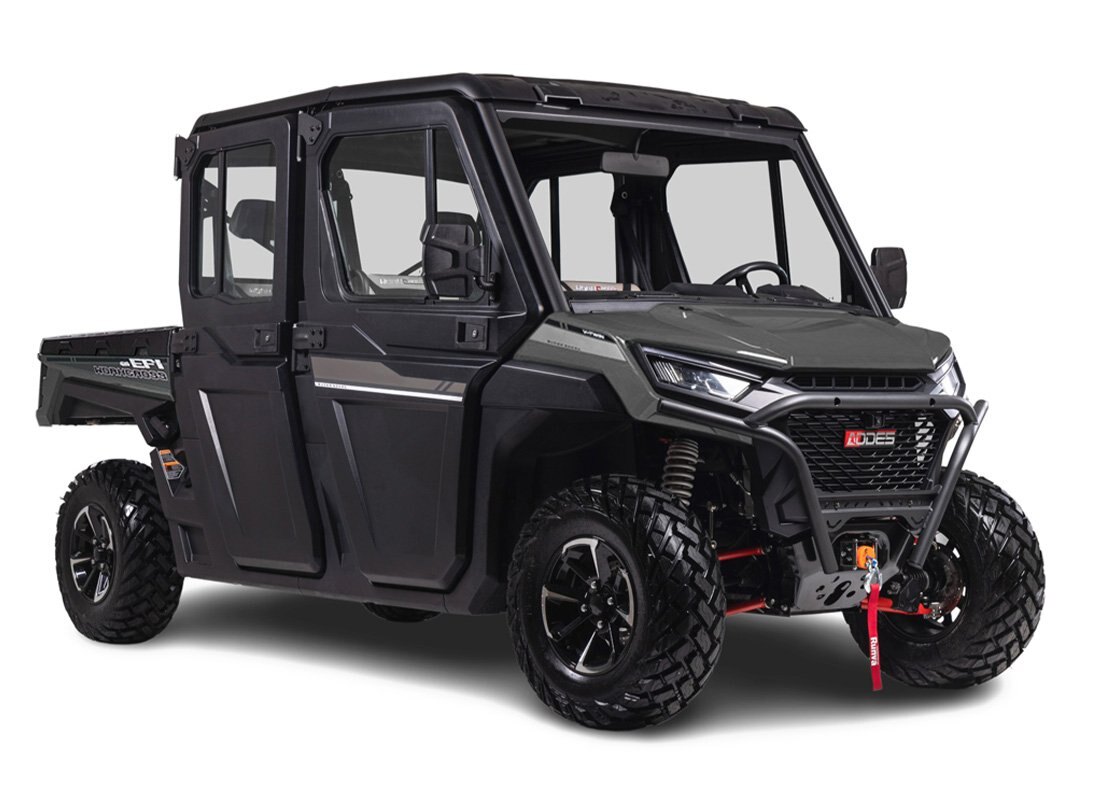

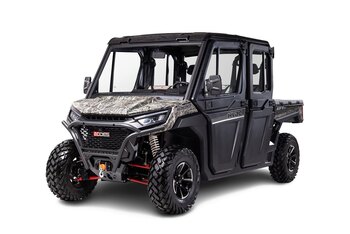

2026 AODES CANADA WORKCROSS 1000-6 HVAC

ENGINE

• 976cc V-Twin Cylinder DOHC
• Liquid Cooled 4-Stroke
• Maximum Power: 71hp
• Maximum Torque: 62.6ft-lb
• DELPHI Electronic Fuel Injection (EFI)

TRANSMISSION

• CVTECH Clutch System
• Selectable 2WD-4WD-4WD Lock
• Front Locking Differential

SUSPENSION

• Independent Dual A-Arm Front & Rear
• Adjustable Coil Over Spring Rate
• 18 Way Adjustable Rebound/ Compression Gas Coil Over Reservoir Bypass Front & Rear Shocks

STEERING

• 3 Mode Speed Adjustable Electric Power Steering (EPS)

WHEELS

• 14 inch Aluminum Alloy Wheels
• 30×10-R14 Front
• 30x10-R14 Rear
• Front/ Rear Duel Vented Disk Brakes With Hydraulic 2 Piston Calipers

DIMENSIONS

• Overall Vehicle Dimensions LxWxH: 152in X 65in X 78in
• Cargo Bed Dimensions LxWxH: 52in X 36.1in X 11.3
• Curb Weight: 2285lb
• Gross Vehicle Weight:3559lb
• Wheel Base: 117in
• Tire Track Width: 53in
• Minimum Ground Clearance: 12.2in

CAPACITY

• Fuel Capacity: 48L
• Cargo Box Capacity: 770lbs
• Towing Capacity: 2500lbs
• Passenger Capacity: 6 Person
